MomentA

Layout Planner (AI Rearrange)

MomentA's Layout Planner lets you describe a change in plain English. An LLM produces semantic constraints — a deterministic grid solver calculates exact positions. No pixel coordinates come from the AI.

The Layout Planner is an AI art director built into the editor. Type a plain-English instruction — "make the flowers more prominent", "move the headline above the photo", "use a two-column split" — and the planner updates the design. The key difference from a normal AI assistant: the LLM never places pixels. It outputs semantic intent; a deterministic constraint solver computes exact positions.

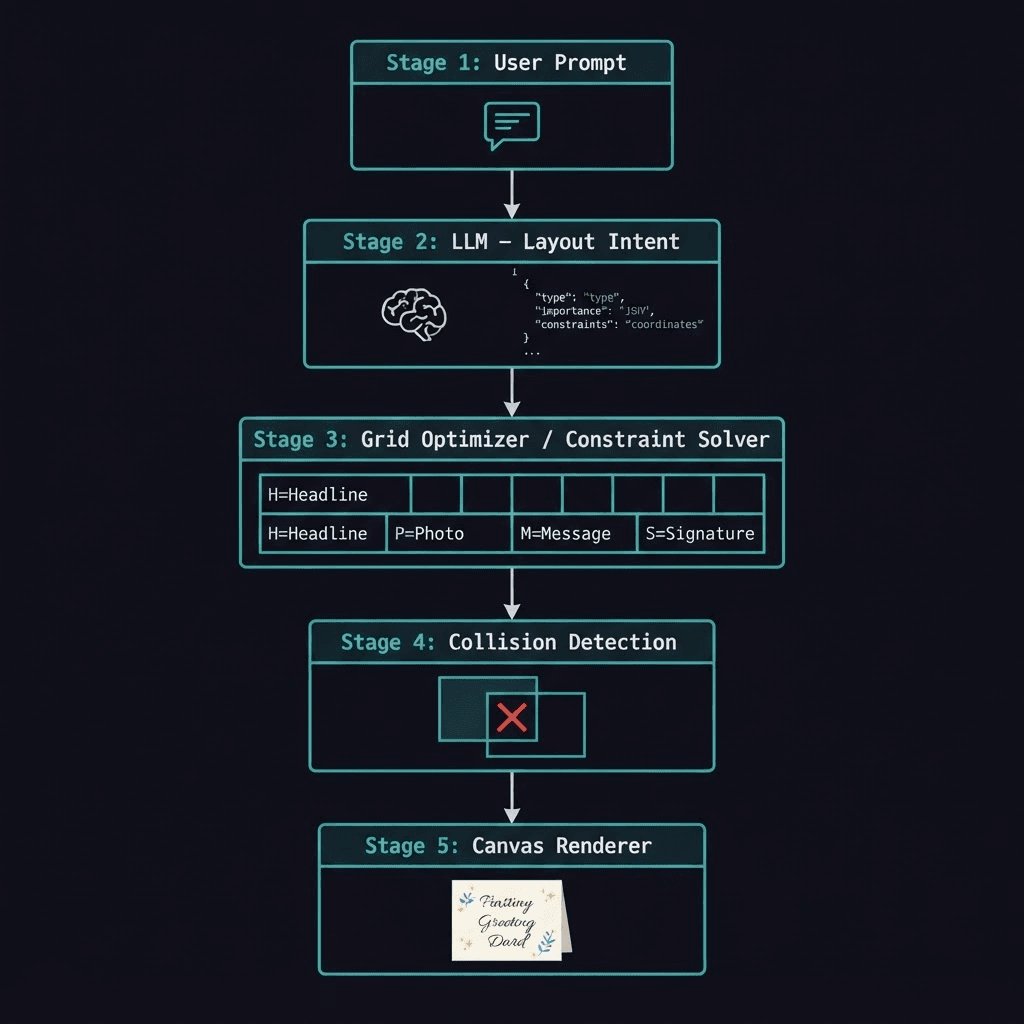

Architecture diagram showing the five-stage pipeline: User Prompt → LLM (Layout Intent) → Grid Optimizer / Constraint Solver → Collision Detection → Canvas Renderer.
The full pipeline from user instruction to rendered canvas. The LLM only touches stage 2 — all geometry is computed deterministically.

How to use it

  1. 1

    Open any design in the editor

    Create a new design or open an existing one from your library.

  2. 2

    Click the Rearrange button in the top toolbar

    It sits between the Grid button and Save. The Layout Planner popover opens.

  3. 3

    Type your layout instruction

    Describe the change you want in plain English. Examples: "make the flowers more prominent", "centre the headline and enlarge it", "use a two-column split with the photo on the left". Press Enter or click Apply Layout.

  4. 4

    Review the result

    The solver re-calculates all positions and rebuilds the canvas. If the result isn't right, type a follow-up instruction or use Undo.

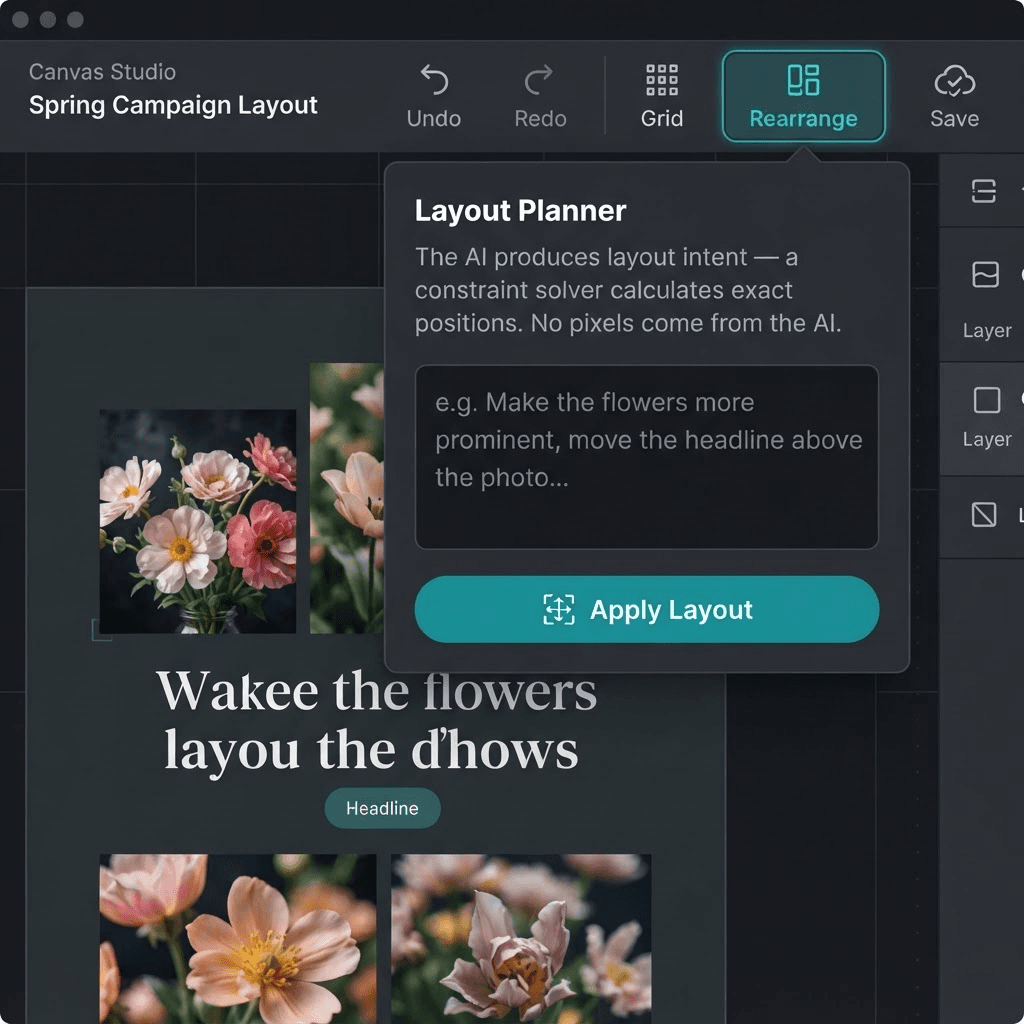

The Rearrange popover open in the toolbar, showing a textarea for the layout instruction and an Apply Layout button.
The Rearrange popover — type a plain-English instruction and the solver does the rest.

What the LLM produces

The LLM is given a strict system prompt that forbids pixel coordinates, canvas fractions, and any absolute sizing. It is only allowed to produce a LayoutRecipe — a list of semantic elements (headline, photo, body, accent, …) each with importance, size constraints (min/preferred/max column spans), and a set of named layout rules (e.g. headline_above_photo, golden_ratio_preferred).

Semantic elements

Each element has a type (headline, photo, body, accent, …), an importance level (low → highest), and optional size constraints in grid units. No coordinates.

Layout rules

Named constraints such as headline_above_photo, photo_centered, maintain_visual_balance, golden_ratio_preferred. The solver enforces them in priority order.

Orientation hint

The LLM picks portrait, landscape, or square based on the instruction and current canvas. The solver uses this to set the grid aspect ratio.

The grid optimizer

The solver places elements on a 12-column × N-row grid. It works in five passes: (1) sort by importance, (2) assign preferred sizes within min/max constraints, (3) apply layout rules, (4) detect and resolve collisions by shifting then shrinking, (5) score the result for symmetry, whitespace, balance, and golden ratio proximity. The highest-scoring collision-free placement wins.

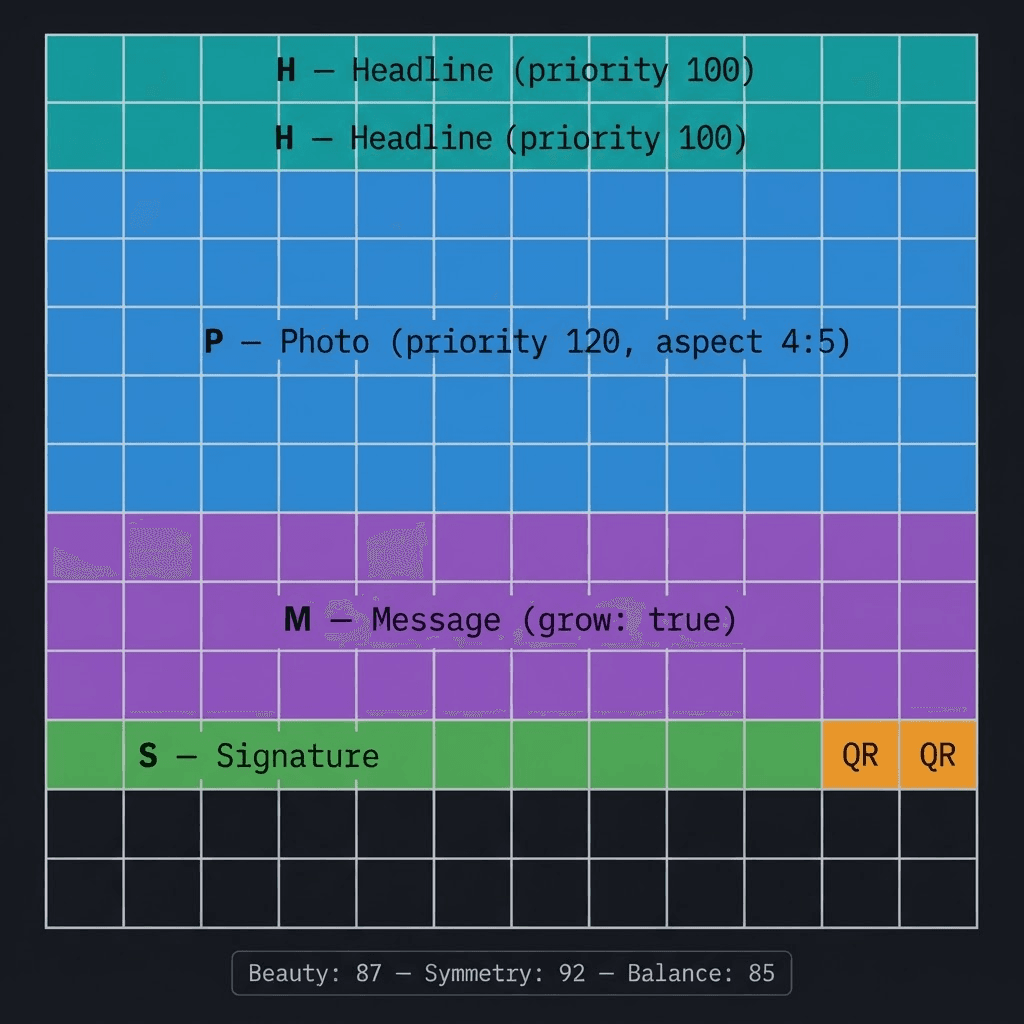

A 12-column grid showing elements placed as labeled coloured zones: Headline (H) across columns 1-12, Photo (P) rows 3-9, Message (M) rows 10-12, Signature (S) bottom left, QR bottom right. A score bar at the bottom shows Beauty 87, Symmetry 92, Balance 85.
The grid optimizer assigns each element to a cell range. The solver maximises beauty, symmetry, and balance subject to no-overlap and margin constraints.

Before and after example

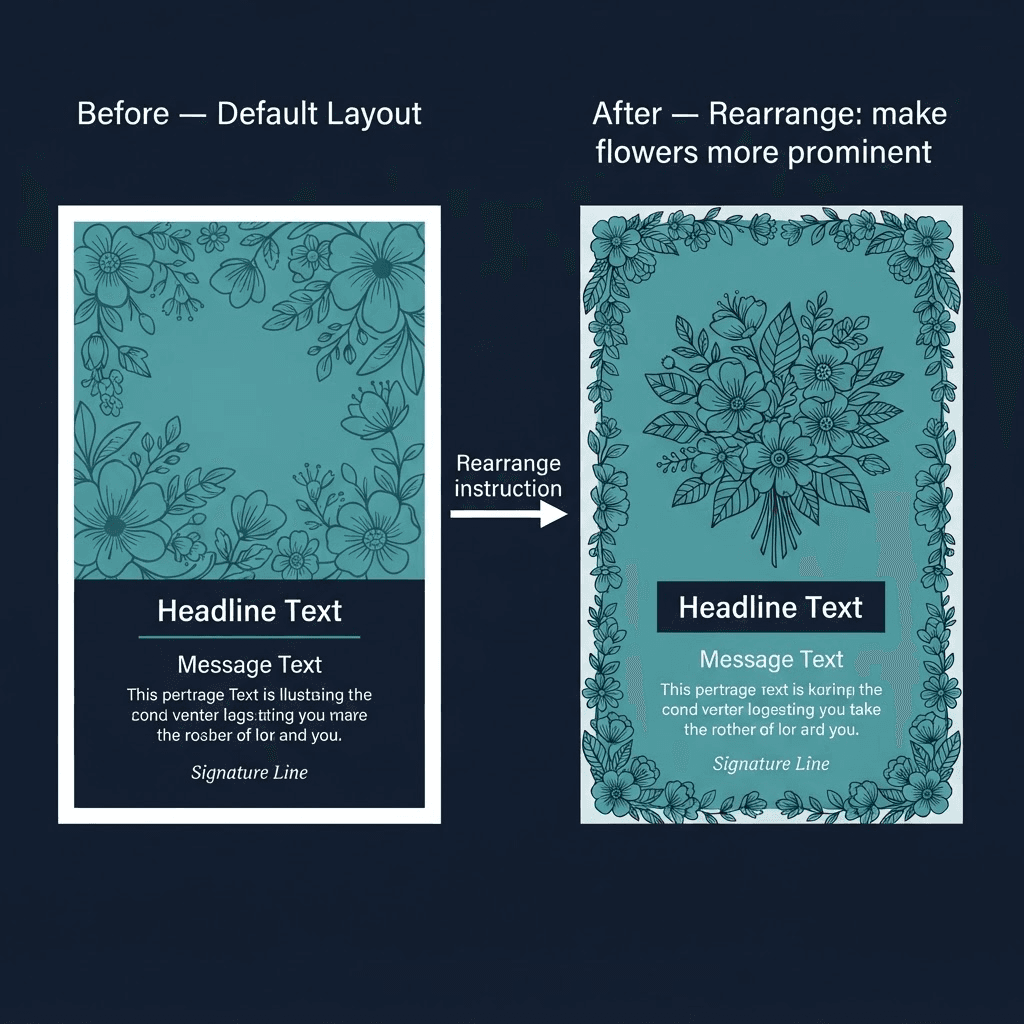

Side-by-side comparison of a birthday card before and after the instruction 'make the flowers more prominent'. Before: hero image at top, text below. After: flower border framing the card, large bouquet in centre, text below.
The same card before and after 'make the flowers more prominent'. The LLM raised the accent element's importance; the solver moved flowers to priority positions and shrank the photo zone.

Constraints the solver respects

ConstraintWhat it enforces
No overlapNo two elements share the same grid cell.
Safe margins10% margin on all sides (1 col left/right, 5% top/bottom).
Minimum font sizeText zones are never shorter than 1 row.
Photo visibilityPhoto/hero zones always meet their minHeight.
Text readabilityBody and headline zones always meet their minWidth.
Golden ratio preferredSolver prefers layouts where the major dividing line is at 61.8% of the canvas height.
Priority orderingHigher-importance elements get their preferredHeight before lower-importance ones can grow.

Multi-language designs

German, Tamil, and other languages expand text significantly. Because the layout engine re-flows from constraints rather than fixed coordinates, long translations automatically claim more rows and push decorative elements outward — no separate template needed.

Rearrange vs. Regenerate

Rearrange moves existing layers — it does not regenerate the AI artwork or change the card's written content. To regenerate the image, use the Polish or Regenerate actions. To change the text, edit directly in the editor.
